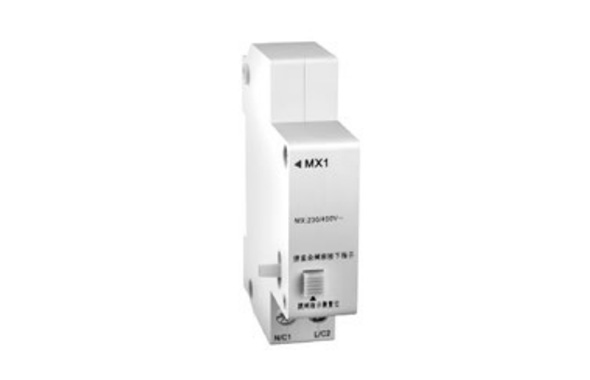

TGB1N-MX1 shunt release (hereinafter referred to as release) is mainly assembled with the TGB1N series miniature circuit breaker with frame current 125A at the right side, suitable for AC 50/60Hz with rated voltage up to 400V for remote shunt tripping operation
Preguntar
Catalogar
Certificado
| Modulus | 1（9mm） | ||
| Working voltage (V AC) | 415 | 240 | |
| Rated current (A AC) | 3 | 6 | |
| Working voltage (V DC) | 130 | 48 | 24 |
| Rated current (A DC) | 1 | 2 | 6 |
| Making and breaking capacity | times | ||
| Max. wiring area (mm2) | 2.5 | ||
| Installation | Installed | after assembling with circuit breaker | |
| Use category | AC12DC12 | ||
| Modulus | 2（18mm） | ||
| Working voltage (V AC) | 415 | 220-240 | 100-130 |
| Trip power consumption (VA AC) | 625 | 184 | 44 |
| Working voltage (V DC) | 110-130 DC | 48 AC/DC | 24 AC/DC |
| Trip power consumption (VA) | 45 | 48 | 185 |
| Shunt life | 500 | ||
| Max. wiring area (mm2) | 2.5 | ||
| Installation | Installed after assembling with circuit breaker | ||
