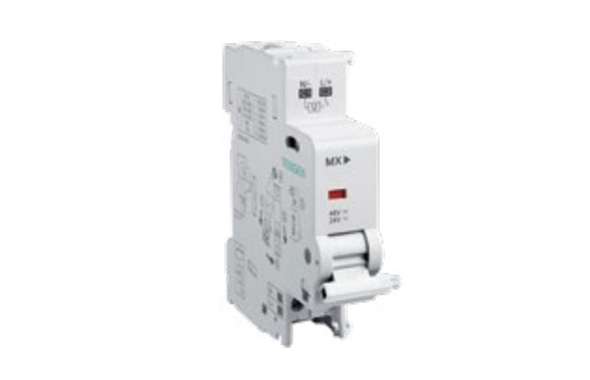

TGB1N-MX shunt release (hereinafter referred to as release) is mainly assembled with the TGB1N series miniature circuit breaker with Frame current 63A and with the residual current action circuit breaker with frame current 63A (32A), suitable for AC 50/60Hz with rated voltage up to 400V for remote shunt tripping operation.
Preguntar
Catalogar
Certificado
| Modulus | 2（18mm） | ||
| Working voltage (V AC) | 415 | 220-240 | 100-130 |
| Trip power consumption (VA AC) | 625 | 184 | 44 |
| Working voltage (V DC) | 110-130 DC | 48 AC/DC | 24 AC/DC |
| Trip power consumption (VA) | 45 | 48 | 185 |
| Shunt life | 500 | ||
| Max. wiring area (mm2) | 2.5 | ||
| Installation | Installed after assembling with circuit breaker | ||
