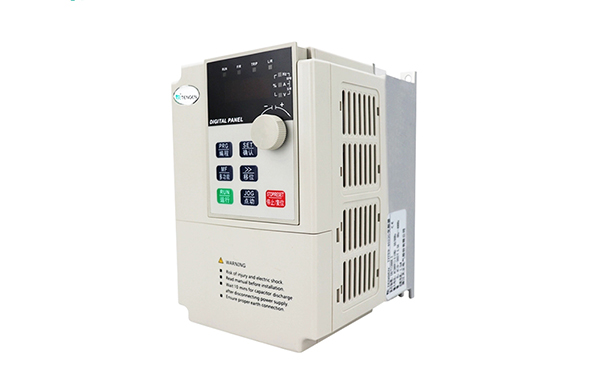

El inversor de la serie TVFE9 (variador de frecuencia) es un inversor vectorial sin sensor de velocidad de alto rendimiento desarrollado independientemente por nuestra empresa.
Cuenta con un excelente rendimiento dinámico de aceleración y desaceleración, una alta salida de par a baja velocidad (1.5 veces el par nominal a 0.5 Hz), una alta capacidad de sobrecarga y una operación flexible y conveniente. Además, ofrece control PID en direcciones directa e inversa, un tamaño compacto y una fuerte adaptación ambiental.

Preguntar

Catalogar

TVFE9.pdf

Certificado

Descripción general

	Item	Technical specification
Input	Voltage	Single-phase 220V (-15%~+15%)
		Three-phase 380V (-15%~+20%)
		Voltage unbalance ratio <3%
	Freq.	47~63Hz
Output	Voltage	0 ~ input voltage
Output	Freq.	0Hz~400Hz
Basic functions	Frequency command	Digital setting: 0.01Hz; Simulation setting: Max. frequency x 0.02%
	Control method	Open-looped vector control (SVC); V/F control
	Starting torque	1Hz/150% (SVC)
	Speed adjusting range	1:100 (SVC)
	Speed stabilizing precision	±0.5% (SVC)
	Torque control precision	SVC: ±0.5% (more than 5Hz)
	Torque boost	Torque increased by 0.0%~20.0%
	V/F curve	Four ways: Linear type; multipoint type; complete V/F separation, incomplete V/F separation
	Acceleration and deceleration curves	Straight line or S curve acceleration and deceleration method;
	Acceleration and deceleration curves	Four types of acceleration and deceleration time; acceleration and deceleration time range: 0.0~3600.0s
	DC braking	DC brake starting frequency: 0.00Hz~20.00Hz;
		Braking time: 0.0s~60.0s;
		Braking action current value: 0.0%~100.0%
	Jogging control	Jogging frequency range: 0.00Hz~50.00Hz; Jogging acceleration and deceleration time 0.0s~20.0s
	Simple PLC, multi-speed operation	Realize at most 16 speed segments through the built-in PLC or control terminal
	Built-in PID	To easily realize the process control closed-looped control system
	Auto voltage regulation (AVR)	To keep the constant output voltage when the power grid voltage changes
Basic functions	Overvoltage and overcurrent speed out-of-limit control	To limit the current and voltage automatically during operation to prevent frequent trip due to overcurrent or overvoltage
Basic functions	Torque limting and control	In the vector control mode, realize the torque control, and limit the torque automatically during operation to prevent frequent trip due to overcurrent.

Product features:

5.1 With open-loop vector control technology with motor self-leaning function, realize the high-precision and stable operation of motor.

5.2 With large low-frequency torque (0.5Hz, 1.5 times rated torque), high overload capacity.

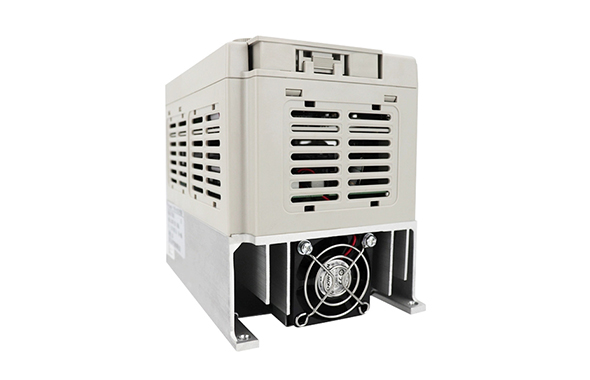

5.3 With independent air dust design for good heat dispersion, optional dust cover for good dustproof effect, and strong environmental adaption.

5.4 With low-inductance structure design, strong anti-interference performance

5.5 Standard RS485 MODBUS communication.

5.6 With multiple built-in practical functions, such as programmed operation, PID regulator, and textile swing frequency control, the machine can be used in flexible and variable applications.

5.7 With the operating time accumulation function, the relevant operating parameters can be switched for display.

5.8 With auto energy-saving operation function, the energy-saving effect is very obvious at the specific lightload application.

5.9 Simple and smooth appearance, complying with the aesthetic features of industrial product.

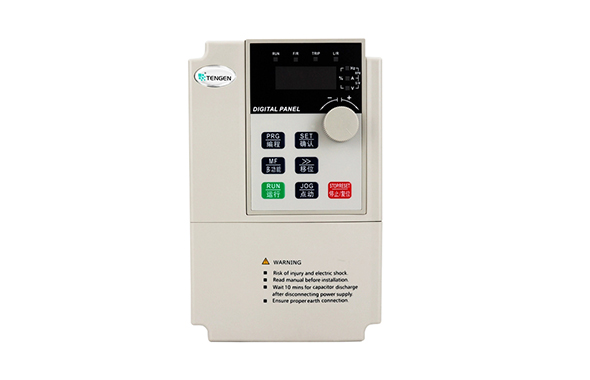

5.10 With detachable keyboard, pull out the keyboard to realize remote monitoring.

5.11 With multi-function expansion cards such as water supply card and injection molding machine card to satisfy the application requirements of multiple industries.
