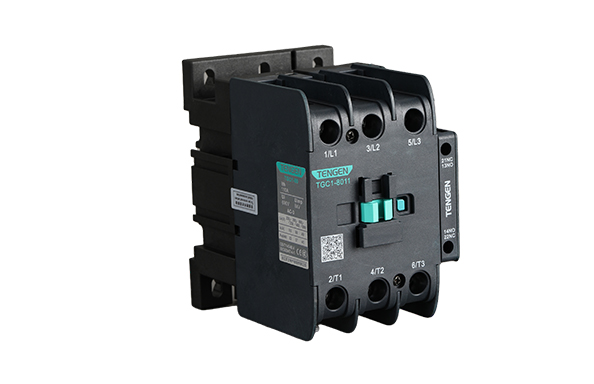

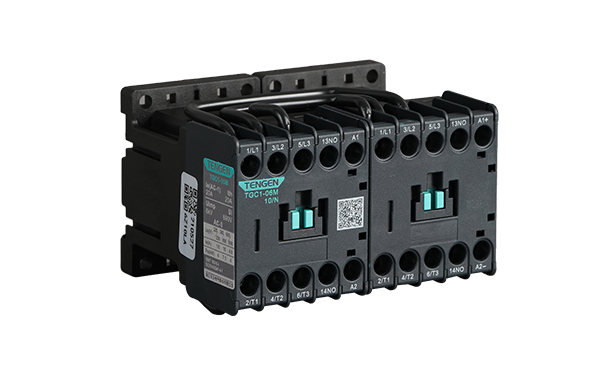

El contactor de corriente alterna (CA) de la serie TGC1 se caracteriza por su diseño compacto y apariencia estilizada. Se utiliza principalmente en sistemas de potencia de CA a 50 Hz (o 60 Hz) con un voltaje nominal de operación de hasta 690 V. Bajo la categoría de utilización AC-3, opera con un voltaje nominal de trabajo de 380 V y una corriente nominal de hasta 95 A para la conexión y desconexión remota de circuitos.
Asimismo, puede combinarse con un relé térmico adecuado para formar un arrancador electromagnético, permitiendo proteger los circuitos ante posibles sobrecargas. Este contactor es ideal para el arranque y control frecuente de motores de corriente alterna.
Este producto cumple con la norma IEC 60947-4-1.

Preguntar

Catalogar

TGC1.pdf

Certificado

Contactors TGC1 CE Certificate Contactors TGC1 CB Certificate

Descripción general

Model			TGC1 -06	TGC1 -09	TGC1 -12	TGC1 -18	TGC1 -25	TGC1 -32	TGC1 -38	TGC1 -40	TGC1 -50	TGC1 -65	TGC1 -80	TGC1 -95
Number of poles			3 Poles
Rated operating voltage Ue V			220/230， 380/400， 660/690
Rated operating current Ie	380V 400V	AC-3 A	6	9	12	18	25	32	38	40	50	65	80	95
	380V 400V	AC-4 A	2.6	3.5	5	7.7	8.5	12	14	18.5	24	28	37	44
	660V 690V	AC-3 A	3.8	6.6	8.9	12	18	22	22	34	39	42	49	49
	660V 690V	AC-4 A	1	1.5	2	3.8	4.4	7.5	8.9	9	12	14	17.3	21.3

Normal operation and installation conditions:

1.1 Ambient temperature (around the equipment): Allowable working temperature: -35ºC~+70ºC; normal working temperature: -5ºC~+40ºC; when the working environment temperature is higher than +40ºC, by considering that the allowable limit temperature rise of the product will be reduced, the rated working current must be reduced (the derating coefficient sees Table below), and the quantity of the contactors mounted in the standard assembly shall be decreased, otherwise the product may be damaged, the service life may be shortened, and the working reliability may be reduced, and furthermore the product action range may be affected; when the working environment temperature is lower than 5°, considering that the insulation and lubrication grease may be congealed at too low ambient temperature resulting in product action failure, please contact the manufacturer and user for design or use.

1.2 Installation conditions: The inclination between the mounting surface and the vertical surface is not more than ±22.5ºC,and the installation category is Class III;

1.3 Pollution level: 3

1.4 Altitude: Not more than 2000m

1.5 Atmospheric conditions: When the maximum temperature is +70ºC, the relative humidity of the air does not exceed 50%.Higher relative humidity is allowed at lower temperatures, for example, up to 90% at 20ºC. Special measures should be taken for condensation occurred occasionally due to temperature changes;

1.6 The product should be installed and used in a place where there is no obvious shaking, impact and vibration.

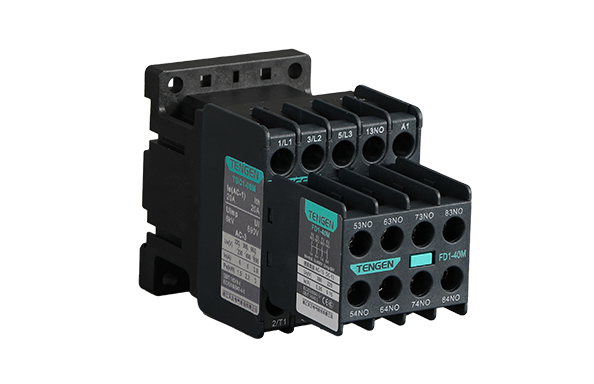

1.7 Auxiliary contact type

10: 1NO+0NC(for 06~38A) 01: 0NO+1NC(for 06~38A) 11: 1NO+1NC(for 09~95A)
