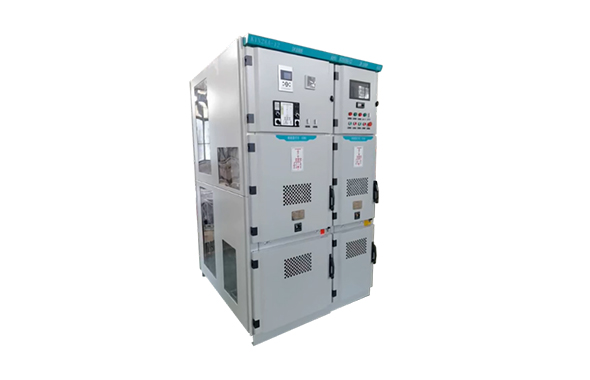

El aparejo de conexión con envolvente metálica, extraíble, blindado y de CA para interiores KYN28-12 se utiliza en sistemas de energía de CA trifásica con una tensión nominal de 12 kV y una frecuencia nominal de 50 Hz para la recepción y distribución de energía eléctrica, así como para el control, protección y monitoreo de circuitos.
Preguntar
Certificado
Working environment conditions:
4.1 Ambient temperature: Max.: +40°C, Min.: -15°C (down to -45℃ under special process conditions);
4.2 Ambient humidity: daily mean < 95%, monthly mean ≤ 90%;
4.3 Altitude: no more than 1,000 meters;
4.4 Earthquake resistance: the earthquake intensity does not exceed magnitude 8;
4.5 There is no obvious pollution such as corrosion or flammable gas, and water vapor in the surrounding air;
4.6 There is no serious dirt and frequent violent vibration; the Category 1 shall be met under severe conditions; Note: If deviation of normal service conditions occurs, the customer should inform the manufacturer before production.
| Name | Unit | Parameter |
| Rated voltage | kV | 12 |
| Rated power frequency withstand voltage 1min Ud | kV | Phase-to-phase, to earth 42, open contacts 48 |
| Rated impulse withstand voltage, Up(peak) | kV | Phase-to-phase, to earth 75, open contacts 85 |
| Rated freq. | Hz | 50 |
| Rated current | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 |
| Rated current of branch busbar | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 |
| Rated short-time withstand current(effective value) | kA | 20, 25, 31.5, 40 |
| Rated peak withstand current | kA | 50, 63, 80, 100 |
| Rated short-circuit duration | s | 4 |
| Protection grade | Housing: IP4X; when the compartment door and circuit breaker door are open: IP2X |
